innoSTRAIL with connection plate

FACTS

  • Location: Nieuwegein, Netherlands
  • Client: Bestuurs Regio Utrecht (BRU)
  • Products: innoSTRAIL, connection plates
  • Length: 10 x innoSTRAIL in total 115,2 m
  • Conditions: Rail: 49E1, sleeper: B70 and concrete flat, radius 40 m
  • Period: in phases from 2017 to 2019



ADVANTAGES innoSTRAIL

  • Suitable for level crossings with medium to high loads
  • Independent of slepper spacing
  • Individually adaptable to almost all requirements and climates
  • Fast, simple installation and removal
  • Long service life

ADVANTAGES CONNECTION PLATE

  • Seamless connection to concrete surfaces





AT A GLANCE

The operator of Sneltram (city railway) around Utrecht, Bestuurs Regio Utrecht (BRU), needed a new workshop and a siding area for new vehicles.

Due to the long-standing and good cooperation with KRAIBURG STRAIL and Nedstrail, as well as the high-quality products from STRAIL, BRU decided to work together again. The level crossing system innoSTRAIL and specially designed connection plates from STRAIL were used.

The level crossing panels were directly connected to the hall and run in a tight radius. The connecting plates ensure a seamless transition between the level crossing and the hall. The plates were anchored directly into the concrete hall floor with heavy-duty dowels. This allowed the inner and outer panels to be bolted to the hall floor.

The installation of the level crossing plates started at the connecting plate and not, as usual, in the middle of the level crossing.

Aufgleisgelände BRU mit innoSTRAIL

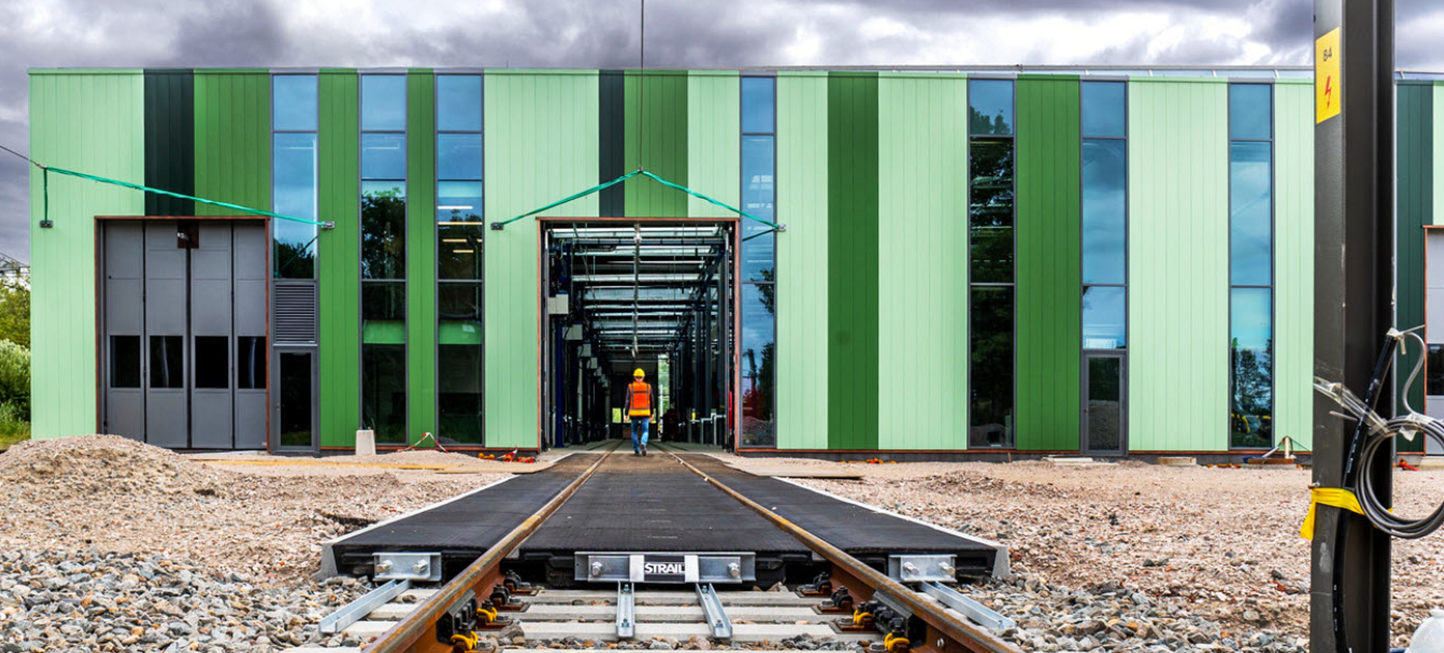

Picture 1: BRU relied on STRAIL products for the construction of a new workshop and sidings.

Anschlussbleche Utrecht

Picture 2: Using specially designed connection plates from STRAIL, the inner and outer panels were seamlessly screwed to the hall floor.

Verbindung Anschlussblech mit Hallenboden

Picture 3: The installation of the level crossing began at the connection plate and not, as usual, in the in the middle of the level crossing.
